Batteries and charging

I had 5 Optima Yellow Tops from the Disco and the trailer . I decided to use 4 as auxiliary batteries and also replaced the starting battery with one . I used a National Luna battery management system and a Link 10 for monitoring . As I had already removed the camper to have the load bay rubberised , it was quite easy to get to everything .

CameraZOOM-20120304123818593

Two batteries each side of the camper. They are accessible through the hatches in the bed . I wanted to put them as far forward as possible and also balance the load , as the 4 come in at over 120 kg .

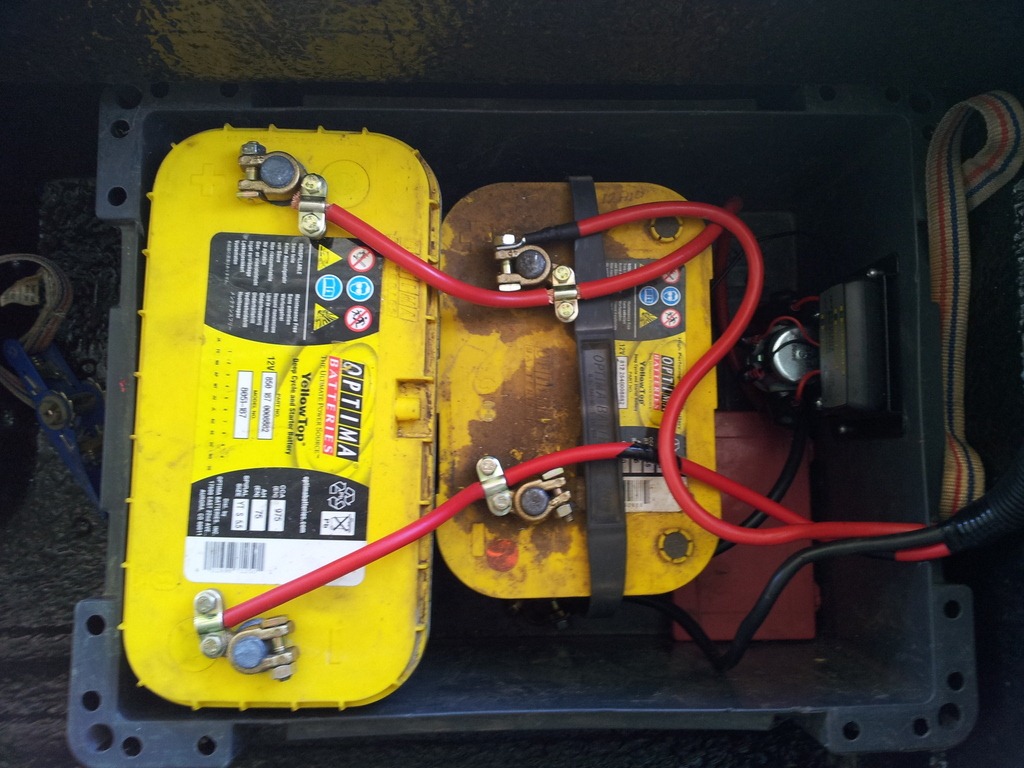

CameraZOOM-20120304123858045

Left pair . The solenoid for the battery management system can be seen on the right hand side .

CameraZOOM-20120304123914752

Right pair . The shunt for the Link 10 and the fuse box for both the Link 10 and the additional pumps for the fuel tanks (that are still to be added) can be seen on the right hand side

Below are some of the Link 10 display values

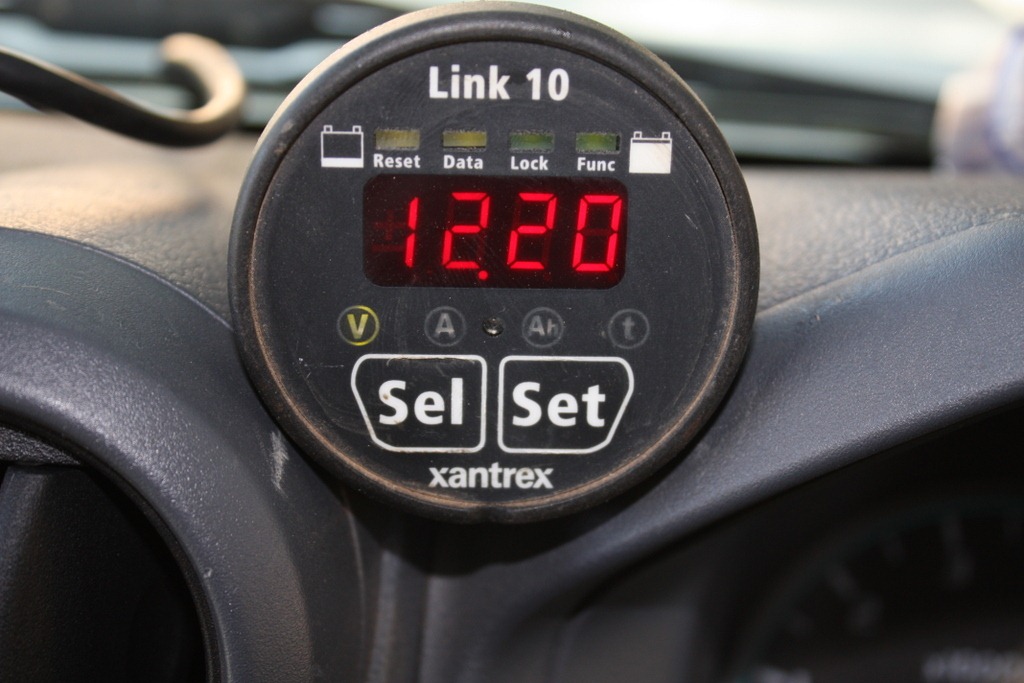

IMG_6621

Current voltage on aux batteries (system not charging)

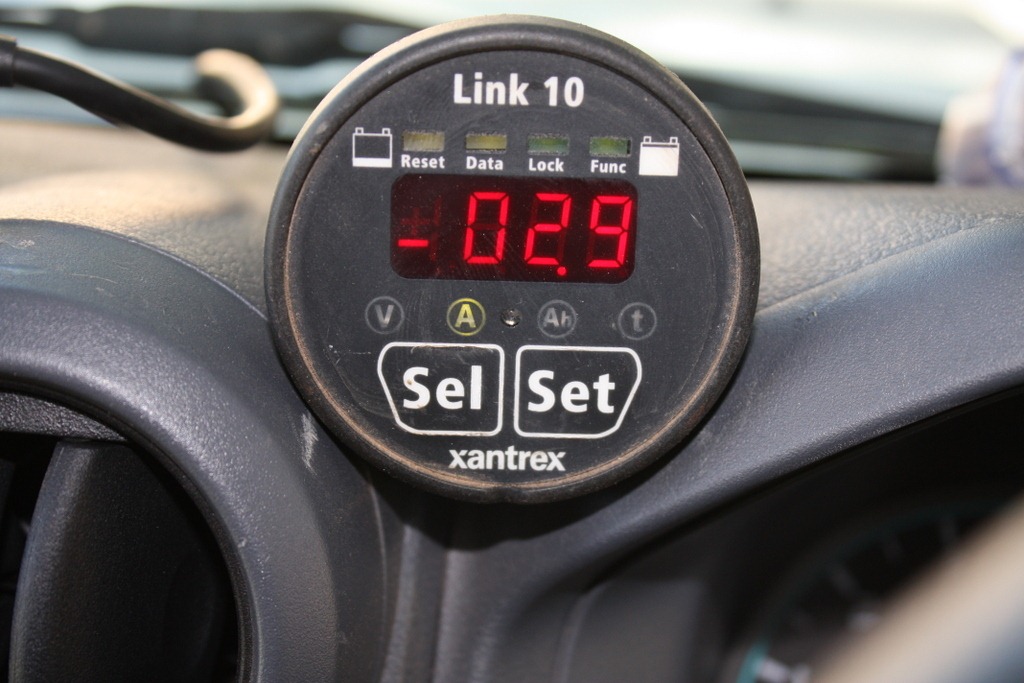

IMG_6622

Current amp draw from aux batteries Shows as positive when the batteries are charging

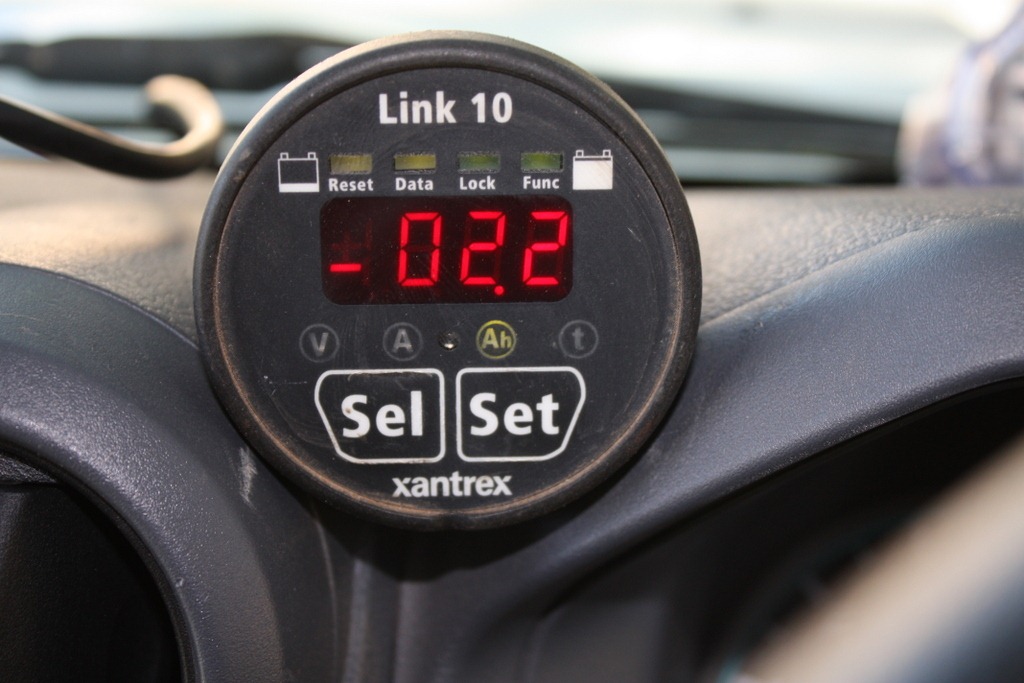

IMG_6623

Amps used to date . (Shows as zero when batteries are fully recharged )

IMG_6624

Estimated hours left before user specified percentage of discharge is reached , based on Peukert’s Law

IMG_6629

Battery in engine bay . It’s a tight fit but it makes it


Leave a comment

Firestone Air Helpers

Yup also sourced through Bud Morris , I needed these because even with the heavy duty springs and shocks , the back of the car is still a bit low. Also it helps firm up the handling for tar driving , and you can deflate them once you’re off road , to allow for more articulation

IMG_6610

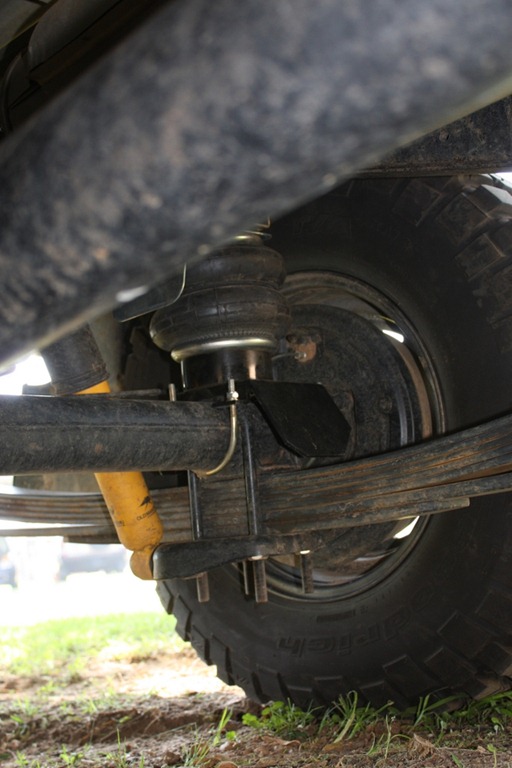

IMG_6612

IMG_6614

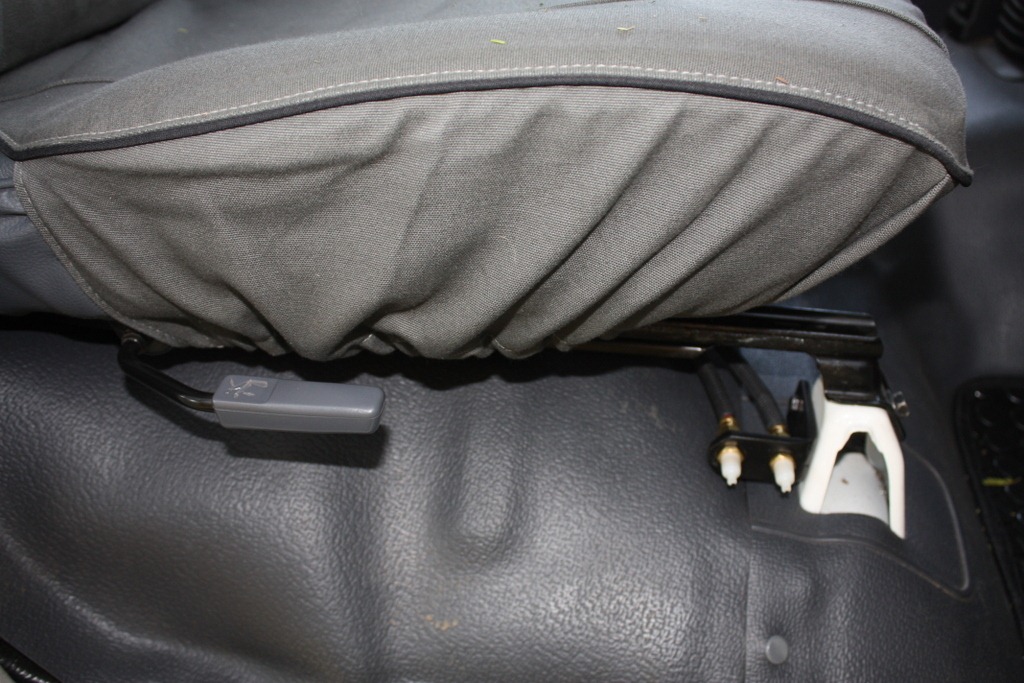

I didn’t want the fancy inflation system , so I just had the bags fitted and had the valves run to under the driver’s seat , where they are out of the way .

I did not cross link the bags , because now I can inflate them separately to best level the car .

More here


Leave a comment

Escape Gear Seat Covers

I ordered the cotton ones through Bud Morris  as he does everything at cost plus 10 and it also takes the hassle out of shopping around

IMG_6607

They come in quite a nice bag

IMG_6608

Seat front . The holes at the top are for the head rest

IMG_6609

The complete set . The hole in the top left cover is at the back where on earlier models there used to be a bump stop . It is possible to order the back covers off a 76 SW which comes without the hole , but I’m not that anal (sorry Charl  Winking smile)

IMG_6615

Fitted which took about half an hour (Mandy – not me – I don’t have the patience )

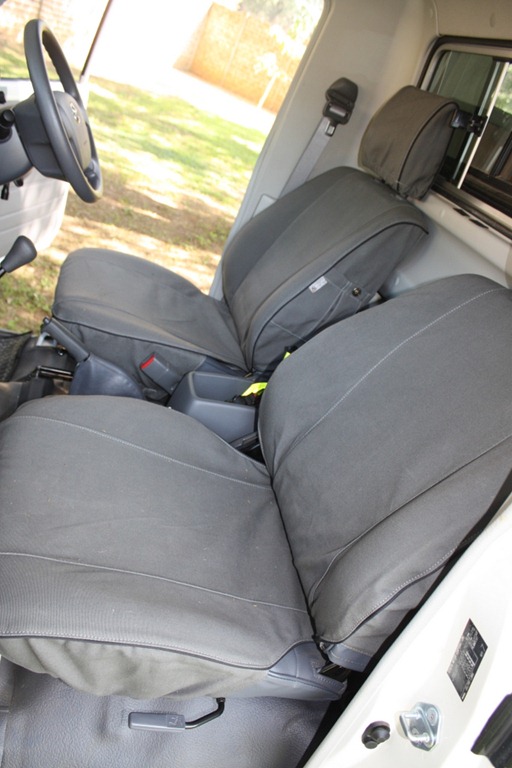

IMG_6617
