I wanted something that could be used with the minimum of setup time , and also something that took up as little packing space as possible

I started with a 55 l tank which is mounted under the car  . I specifically wanted a tank that was separate from the drinking water tanks , as this allows me to top it up with grey water

CameraZOOM-20120913170924384

View forwards

CameraZOOM-20120913170944377

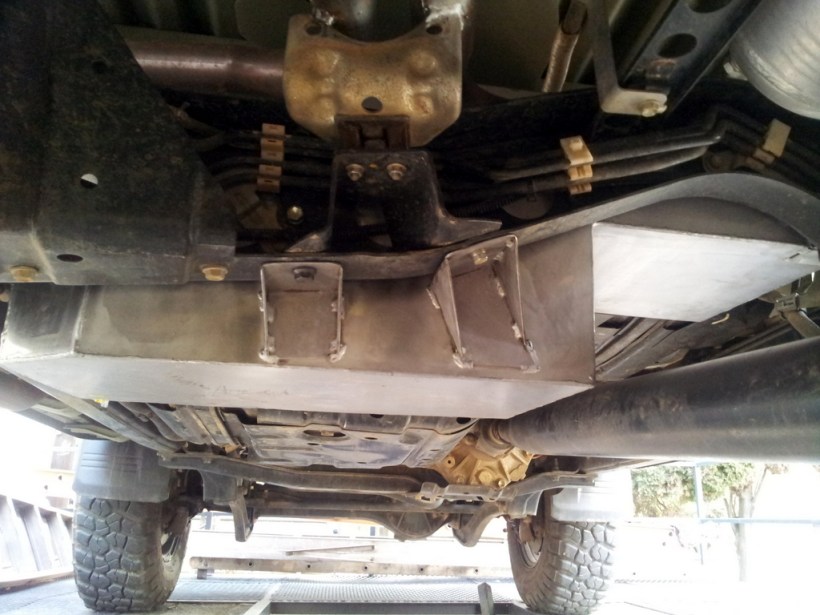

View from the back. The tank is flush with the rear fuel tank

Heat Exchanger

I had the above heat exchanger made up

20130525_154654

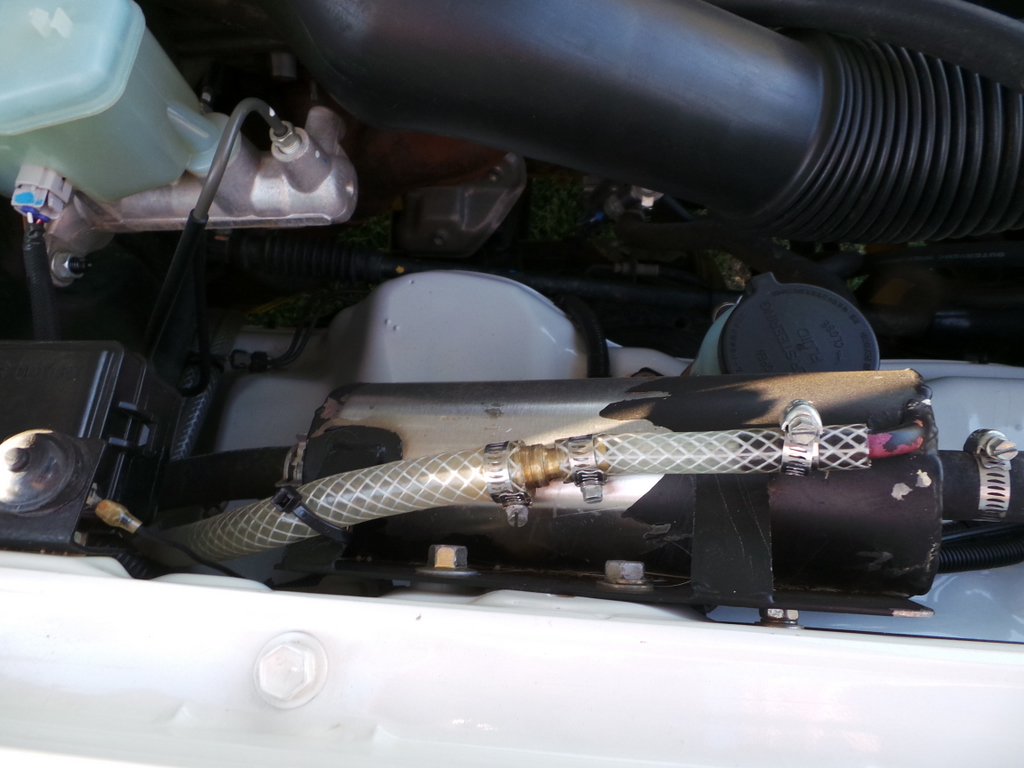

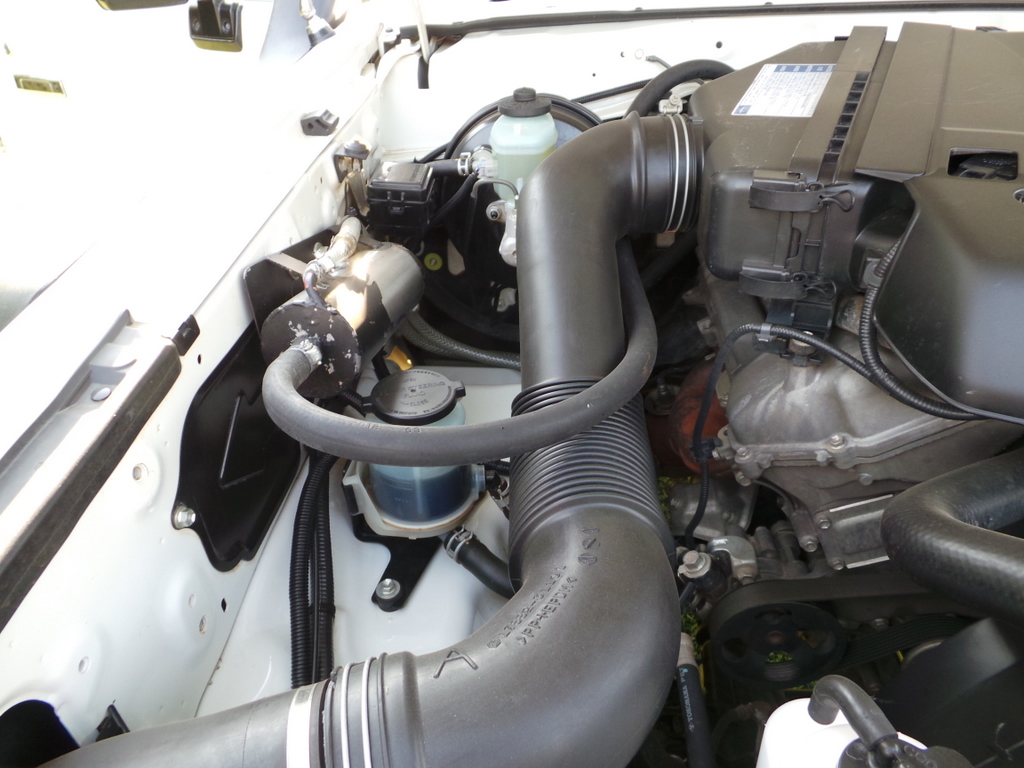

Here it is plumbed into the heater box. This allows me to control the flow of water through the exchanger by adjusting the heater slider inside the car . This allows me to control the heat of the water coming out the shower , and does away with the need for separate hot and cold taps .

20130525_154702

20130525_154953

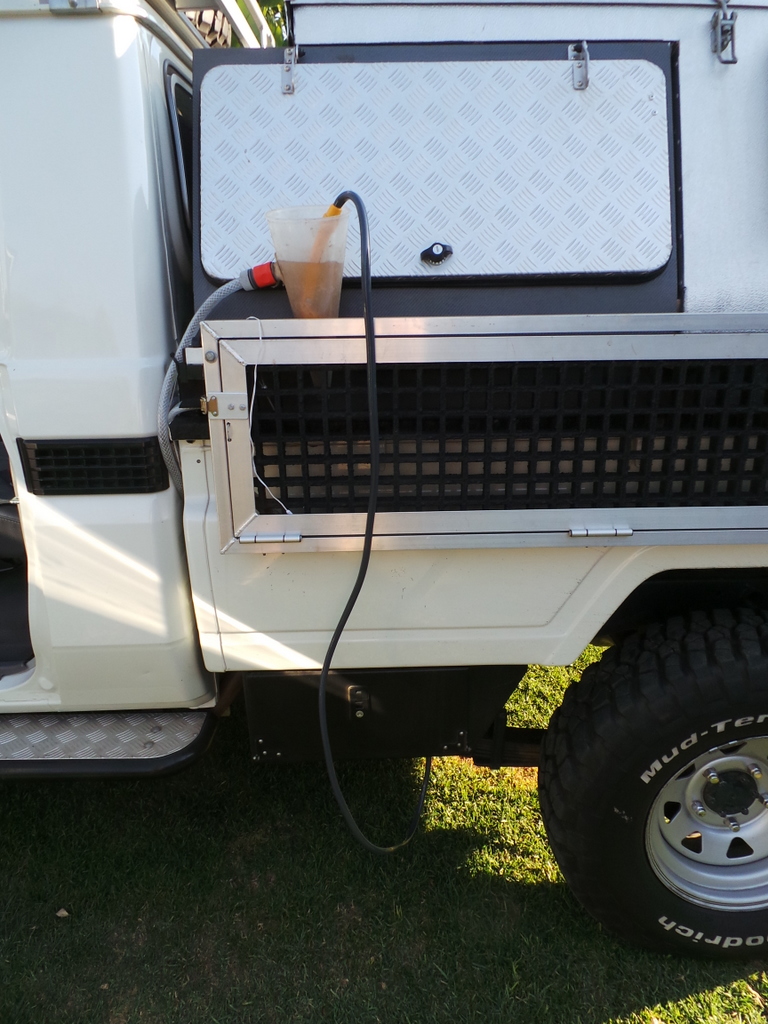

A handheld shower attaches to an outlet under the car which is fed by it’s own pump. The shower can be placed in the funnel while you are showering , which recirculates the water back into the tank , while you are busy washing. It also is where you fill the tank .

NOTE I seem to have caused quite a bit of confusion here with the above pic. The shower is placed in the funnel ONLY to save water. It is not necessary to recirculate the water to heat it, it gets as hot as 65 deg when passing through the heater on the first pass

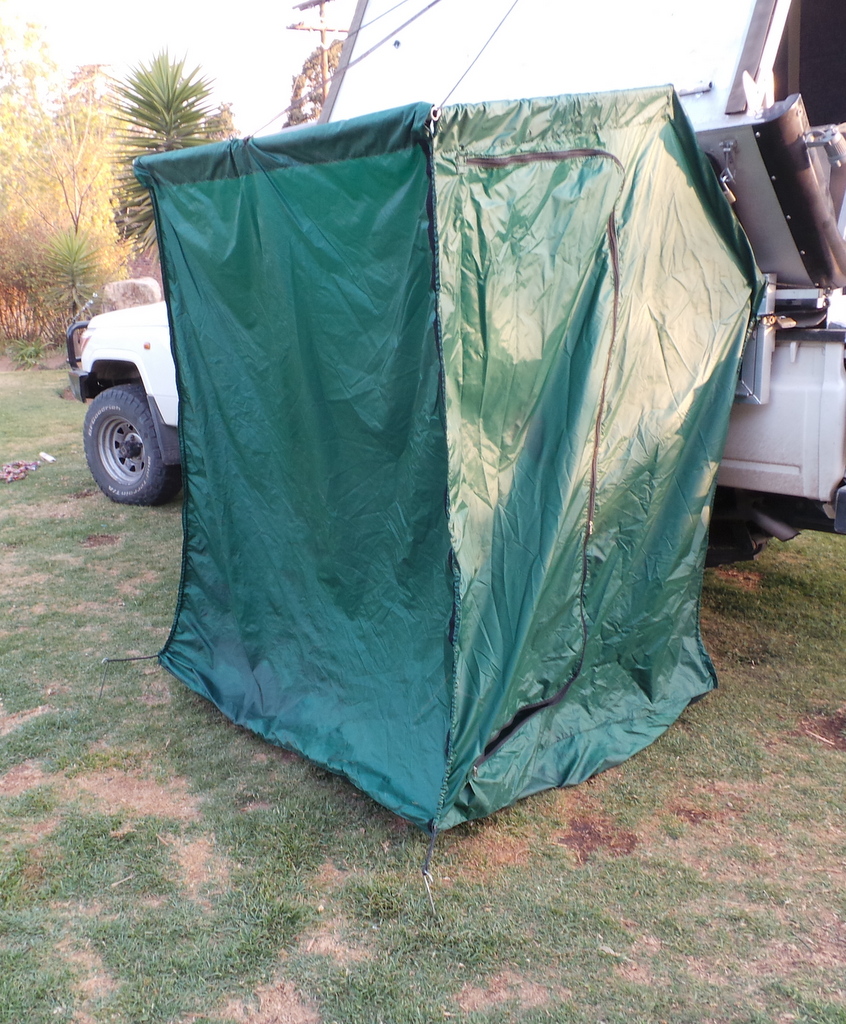

The shower curtain in the open position .

The shower curtain in the open position .

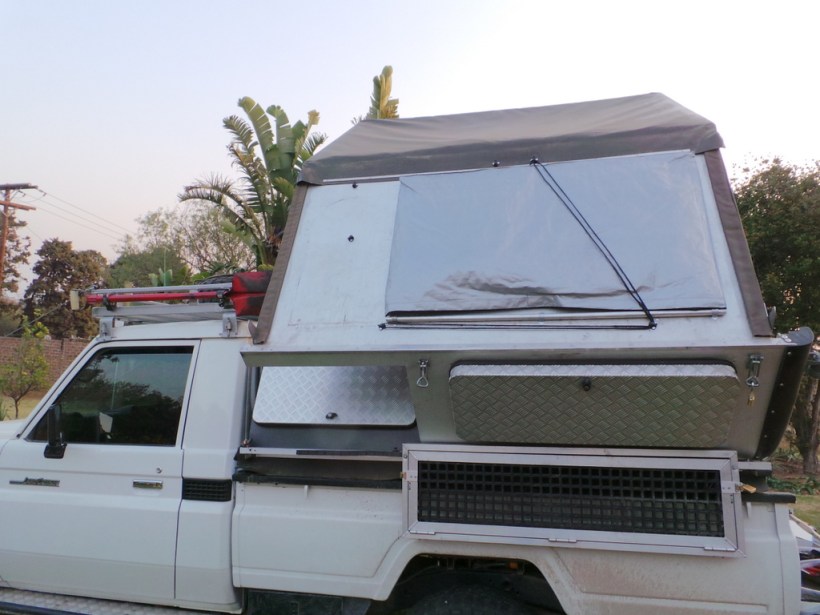

It is stored on the roof of the camper when not in use , and is totally out of the way

It is stored on the roof of the camper when not in use , and is totally out of the way
